372kwh All-In-One Liquid Cooling Battery Energy Storage System

372kwh All-In-One Liquid Cooling Battery Energy Storage System

372kwh battery storage energy

battery storage energy system

battery storage energy

Place of Origin:

China

Brand Name:

ZT-TEK

Certification:

IEC62619; IEC61000, IEC62477, IEC63056; CEI-016, CEI-021, EN 50549-1, EN 50549-2

Model Number:

ZT AIO-372

Contact Us

Request A Quote
Product Details
Color:
Customerised
Scalability:
Modular Design Allows For Easy Expansion
Cycle Life:
Up To 10,000 Cycles
Power Rating:
Up To 1MW
Integration:
Compatible With Solar And Wind Energy Systems
Safety Features:
Built-in BMS And Fire Suppression System
Battery Type:
LPF
Capacity:
Up To 3.72MWh
Efficiency:
Up To 98%
Installation:
Indoor Or Outdoor Installation Options
Warranty:
10 Years
Application:
Commercial And Industrial Energy Storage System
Certifications:
UL, CE, TUV, And UN38.3
Monitoring And Control:
Real-time Monitoring And Remote Control Capabilities
Operating Temperature:
-20°C To 60°C
Payment & Shipping Terms
Minimum Order Quantity
1
Packaging Details
Carton box, ply-wooden box
Delivery Time
1month
Supply Ability
100units/month
Product Description

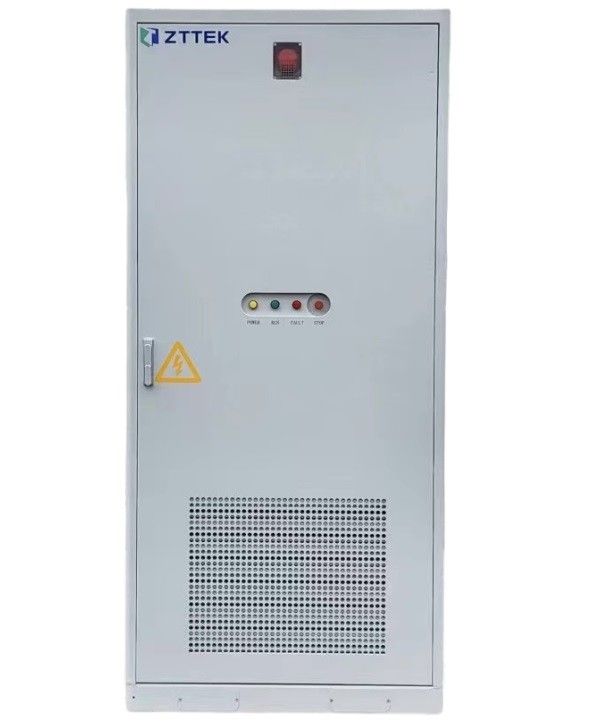

372KWH ALL-IN-ONE LIQUID COOLING BATTERY ENERGY STORAGE SYSTEM

105KW/233KWH ALL-IN-ONE LIQUID COOLING BESS for C&I

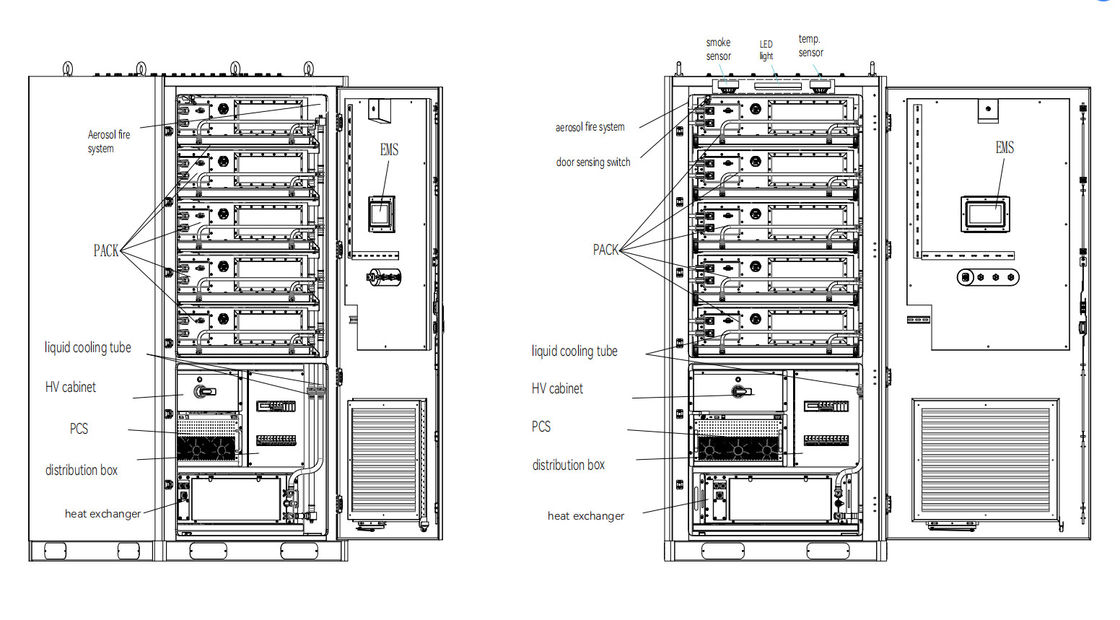

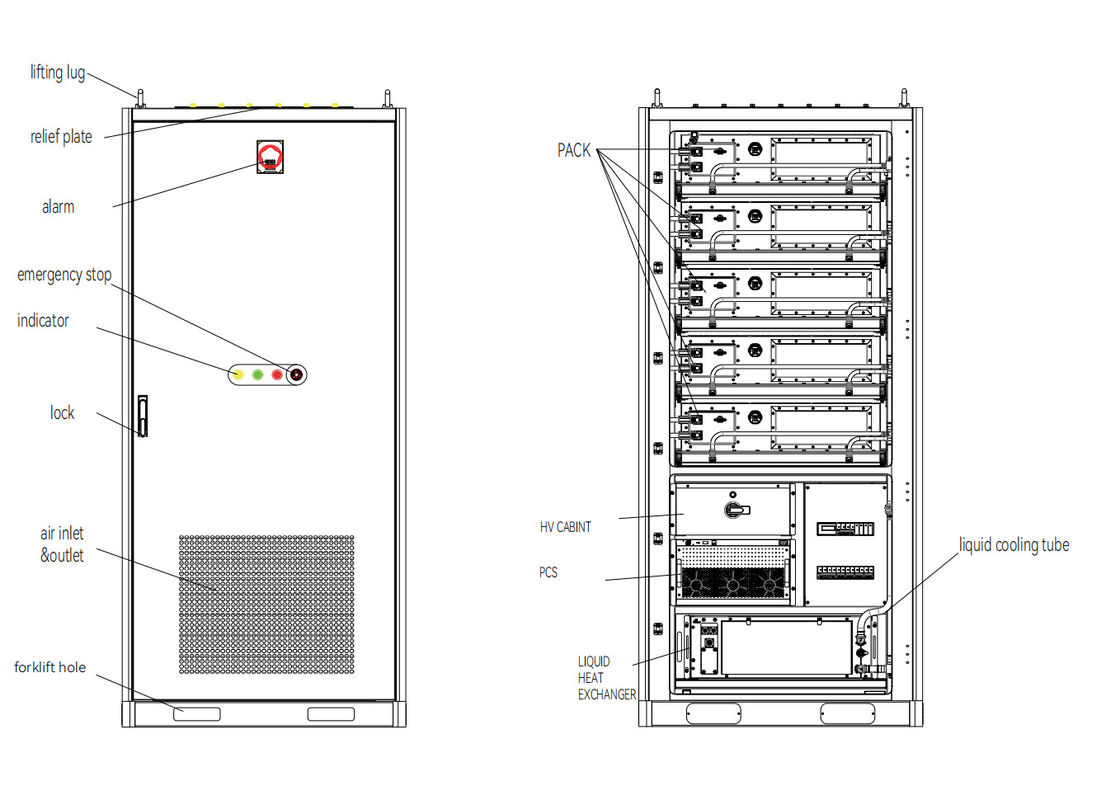

ZT AIO-372 is a All-In-One integrated storage system with nominal capacity of 372kWh, its design concept of "receive and use immediately", and integrates LFP4 batteries, BMS, EMS, HMI, PCS and fire fighting system.



Product Features



  • EASY & FLEIBLE
  • Modular design with pre-installation and pre-commissioning, flexible expansion, and easy operation and maintenance.



  • SAFE & RELIABLE
  • Temperature difference between internal battery cell cores ≤ 2.2°C
  • Three level fire safety design.



  • SMART & FRIENDLY
  • Supports real-time internal resistance detection of battery cells, analyzing battery status from multiple dimensions.
  • Quickly detects faults and records waveforms, achieving rapid system fault localization and analysis.
  • Local data storage
DC side
Battery type LPF
Cell Configuration 1P*52S*8S
Battery Capacity (Ah) 280
Nominal DC Voltage (V) 1331.2
Nominal AC Power (kW) 186
Rated Charge/Discharge rate 0.5C/0.5C
Cooling Mode Liquid cooling
coolant Ethylene glycol: aqueous solution (50%v:50%v)
AC side
Nominal AC Power (KVA) 186
AC overload capacity (KVA) 205
AC connection 3P4W
Nominal grid voltage (Vac) 600V
Nominal grid frequency (Hz) 50/60
Max.THD of current ≤3%
Max. Conversion Efficiency 98.5%
System parameter
Operating temperature -18 to 50℃
Anti-corrosion degree C4
Degree of protection IP55
Fire suppression system Aerosol, smoke, heat, and water pipeline
Standard Altitude (m) ≤4000
Communication Protocol Modbus TCP/RTU, MQTT
Certification IEC62619; IEC61000, IEC62477, IEC63056; CEI-016, CEI-021, EN 50549-1, EN 50549-2

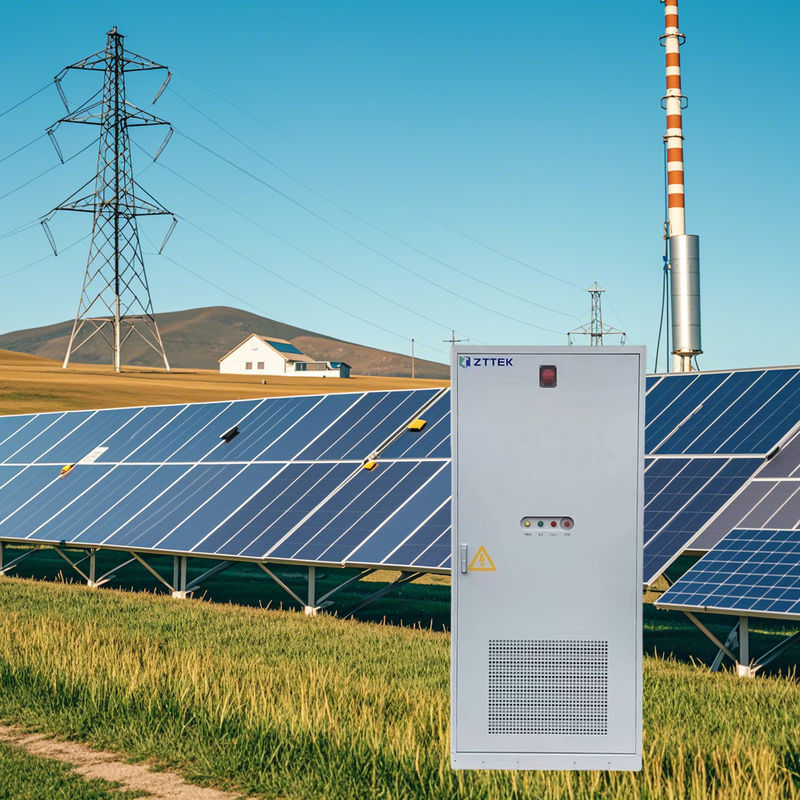

372kwh All-In-One Liquid Cooling Battery Energy Storage System 0

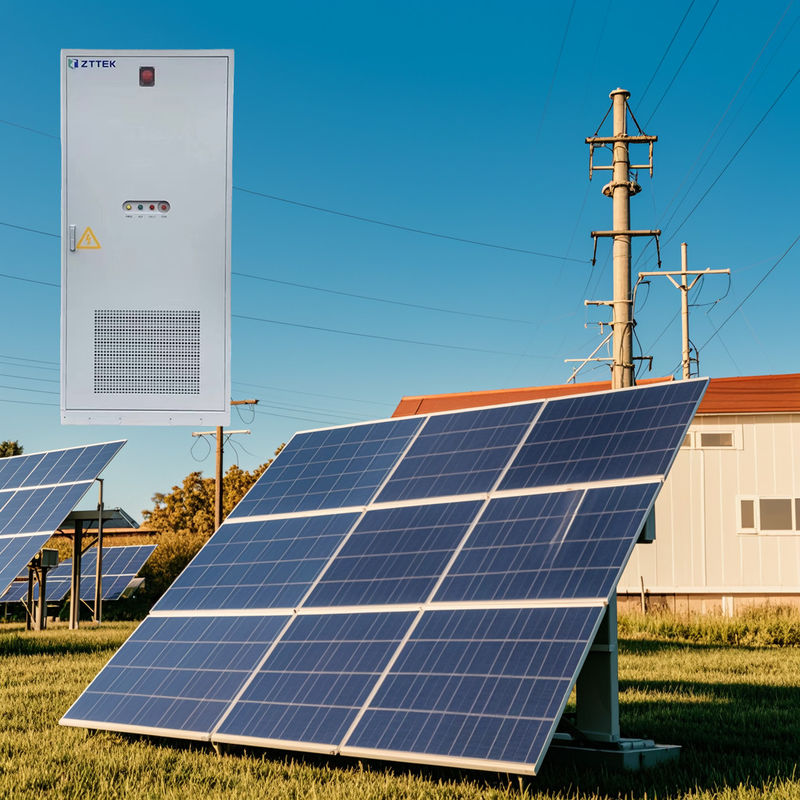

372kwh All-In-One Liquid Cooling Battery Energy Storage System 1

Applications:

RESORTS --CONSTRUCTION SITES-- MINING CAMPS --INDUSTRIAL PARK

HOSPITALS --SOLAR PLANTS --EV CHARGE --STATION FARMS
