Name: Resilient Off-Grid Microgrid With LiFePO4 Battery Bank 14kW 16kwh
Brand: Jiangsu Zhitai New Energy Technology Co., Ltd
SKU: ZT-ESSPLUS-14-51314
Price: Negotiable USD
Availability: InStock

Resilient Off-Grid Microgrid With LiFePO4 Battery Bank 14kW 16kwh

LiFePO4 Off-Grid Microgrid

16kwh Off-Grid Microgrid

14kW Off-Grid Microgrid

Place of Origin:

China

Brand Name:

ZT-TEK

Certification:

IEC 62619-2022, UN 38.3

Model Number:

ZT-ESSPLUS-14-51314

Request A Quote

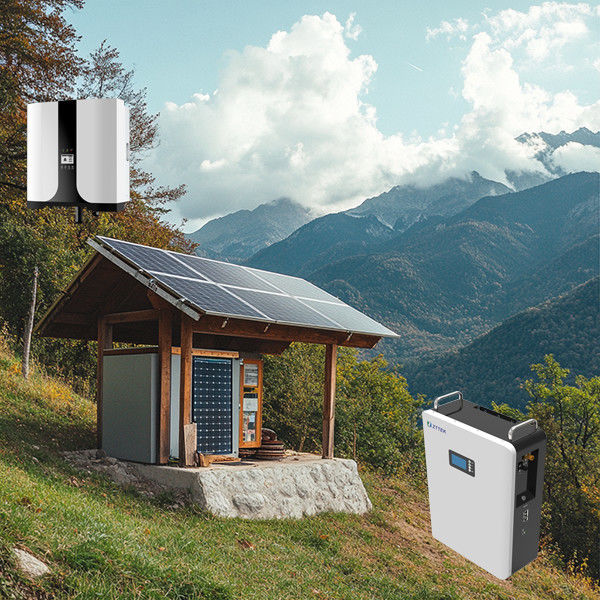

ZT-TEK Resilient Off-Grid Microgrid with LiFePO4 battery bank 14kW 16kwh
14kW AC output
16kwh Lithium-ion battery energy storage system (can be expanded)

In off-grid applications, a microgrid powered by solar, backed up by LFP batteries, provides a reliable energy solution. Solar panels charge the LFP batteries during sunlight hours, storing energy for later use. LFP batteries are particularly advantageous because of their high charge/discharge efficiency, ensuring minimal energy loss. In case of extended cloudy weather, LFP batteries ensure that energy supply remains uninterrupted, contributing to the overall system's resilience and independence.

Example Use Cases:
Remote Communities: Microgrids with solar, batteries, and generators are ideal for remote communities that are off the main grid, reducing reliance on expensive fuel deliveries for generators and improving sustainability.
Industrial Sites and Military Bases: In places where continuous power is essential and grid reliability is low, microgrids can ensure uninterrupted operation.
Urban Applications: Microgrids can be deployed in urban areas to improve resilience against blackouts and enable integration of renewable energy sources into the grid.

Data sheet

OFF-Grid	Model	ZT-ESSPLUS-14-51314
System parameter	Output Voltage	AC, 3Phases,400/230V
	Output frequency	50Hz/60Hz
	Rated output power	14kW
	Max output power	15.4kW
	Overload capacity	18kW , 10S
	Rated output Current	20.3A
	Max output Current	26A
	Communication	WIFI

PV side	Config.	33PCS*600WP
	Input Power W	19800
	Input DC current	14.96A + 14.96A (2 channels)
	Input DC voltage	641.76 V & 681.87V (2 channels)
	MPPT	2

Battery side	Type	LFP
	Voltage	51.2V
	Capacity	16.076kWh
	Charging current	157A
	Discharging current	157A
	BMS	Included
	Communication between BMS & PCS	RS485

Grid / Generators	Input voltage	AC, 3Phases,400/230V
	Input current	20.3A
	Max input current	26A
	Frequency	50Hz, 60Hz
	Power	No less than 14kW

EPS function		Yes
Protections		PV Input Lightning Protection, Anti-islanding Protection, PV String Input Reverse Polarity Protection, Insulation Resistor Detection, Residual Current Monitoring Unit, Output Over Current Protection, Output Shorted Protection
