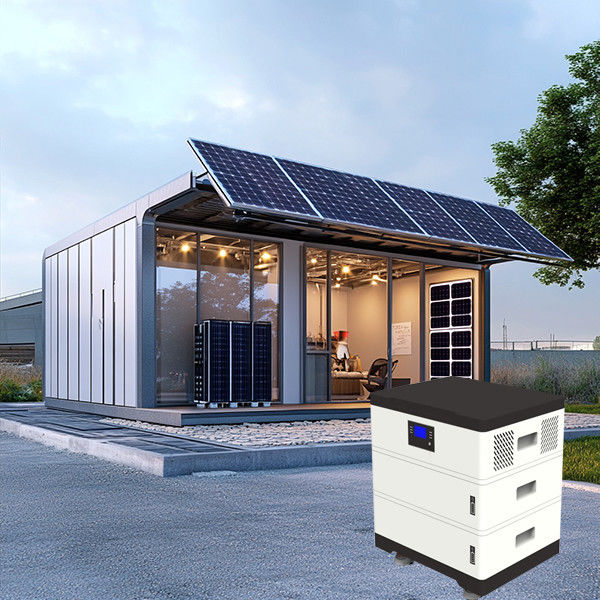

Name: Smart Microgrid With LFP Batteries For Efficiency Both Single Phase And Three Phase AC Output
Brand: Jiangsu Zhitai New Energy Technology Co., Ltd
SKU: ZT-ESSPLUS-20-51100
Price: 29,000.00 USD
Availability: InStock

Smart Microgrid With LFP Batteries For Efficiency Both Single Phase And Three Phase AC Output

Smart Microgrid LFP Batteries

Three Phase Smart Microgrid LFP Batteries

Single Phase Smart Microgrid LFP Batteries

Place of Origin:

China

Brand Name:

ZT-TEK

Certification:

IEC 62619-2022, UN 38.3

Model Number:

ZT-ESSPLUS-20-51100

Request A Quote

ZT-TEK Smart Microgrid with LFP Batteries for Efficiency

For small size workshop & commercial

Output: AC 400V, 3Phase or AC 220V, 1Phase

Output capacity: 20kW

with 20.48kwh Lithium-ion battery energy storage system (can be expanded)

Microgrids featuring LFP batteries offer advanced energy management, balancing solar energy generation with battery storage. The LFP batteries play a key role in optimizing energy usage, efficiently storing solar power and supplying it during peak demand times. Their quick charge and discharge capabilities make them ideal for maintaining consistent power supply. By using LFP batteries, the system reduces reliance on generators, cutting down on fuel costs and emissions.

Example Use Cases:
Remote Communities: Microgrids with solar, batteries, and generators are ideal for remote communities that are off the main grid, reducing reliance on expensive fuel deliveries for generators and improving sustainability.
Industrial Sites and Military Bases: In places where continuous power is essential and grid reliability is low, microgrids can ensure uninterrupted operation.
Urban Applications: Microgrids can be deployed in urban areas to improve resilience against blackouts and enable integration of renewable energy sources into the grid.

Data sheet

OFF-Grid	Model	ZT-ESSPLUS-20-51100
System parameter	Output Voltage	AC, 3Phase,400/230V AC, 1Phase,220~230V
	Output frequency	50Hz/60Hz
	Rated output power	20kW
	Max output power	22kW
	Overload capacity	30kW,10s
	Rated output Current (3P, 1P)	30.3A/29.0A
	Max output Current (3P,1P)	33.3A/31.9A
	Communication	WIFI

PV side	Config.	50pcs *600wp
	Input Power W	30000
	Input DC current	13.58A (3channels)
	Input DC voltage	707V +751V+751V (3channels)
	MPPT	4

Battery side	Type	LFP
	Voltage	51.2V*4 = 204.8V
	Capacity	5.12kWh *4 =20.48kWh
	Charging current	50A
	Discharging current	22A
	BMS	Included
	Communication between BMS & PCS	RS485

Grid / Generators	Input voltage	AC, 3Phase,400/230V AC, 1Phase,220~230V
	Rated input Current (3P, 1P)	30.3A/29.0A
	Max input Current (3P,1P)	33.3A/31.9A
	Frequency	50Hz/60Hz
	Power	No less than 20kW

EPS function		Yes
Protections		PV Input Lightning Protection, Anti-islanding Protection, PV String Input Reverse Polarity Protection, Insulation Resistor Detection, Residual Current Monitoring Unit, Output Over Current Protection, Output Shorted Protection
