Name: Renewable Energy Microgrid With LFP Battery Storage 25kW 25KWH
Brand: Jiangsu Zhitai New Energy Technology Co., Ltd
SKU: ZT-ESSPLUS-25-51100
Price: Negotiable USD
Availability: InStock

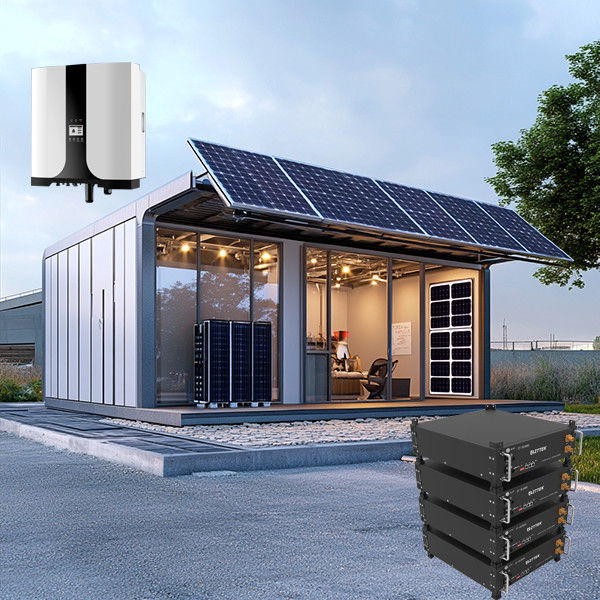

Renewable Energy Microgrid With LFP Battery Storage 25kW 25KWH

LFP Battery Storage Renewable Energy Microgrid

25kW Renewable Energy Microgrid

25KWH Renewable Energy Microgrid

Place of Origin:

China

Brand Name:

ZT-TEK

Certification:

IEC 62619-2022, UN 38.3

Model Number:

ZT-ESSPLUS-25-51100

Request A Quote

ZT-TEK Renewable Energy Microgrid with LFP Battery Storage 25kW 25KWH

For small size workshop & commercial

Output: AC 400V, 3Phase or AC 220V, 1Phase

Output capacity: 25kW

with 25.6kwh Lithium-ion battery energy storage system (can be expanded)

Microgrids powered by solar energy and supported by LFP batteries are an eco-friendly and efficient energy solution. Solar panels generate power throughout the day, and any excess is stored in LFP batteries. These batteries ensure energy is available when sunlight is insufficient. LFP batteries are known for their high energy density and long service life, making them an excellent choice for maintaining grid stability in isolated locations with unpredictable weather patterns.

Example Use Cases:
Remote Communities: Microgrids with solar, batteries, and generators are ideal for remote communities that are off the main grid, reducing reliance on expensive fuel deliveries for generators and improving sustainability.
Industrial Sites and Military Bases: In places where continuous power is essential and grid reliability is low, microgrids can ensure uninterrupted operation.
Urban Applications: Microgrids can be deployed in urban areas to improve resilience against blackouts and enable integration of renewable energy sources into the grid.

Data sheet

	Model	ZT-ESSPLUS-25-51100
System parameter	Output Voltage	AC, 3Phase,400/230V AC, 1Phase,220~230V
	Output frequency	50Hz/60Hz
	Rated output power	25kW
	Max output power	27.5kW
	Overload capacity	37.5kW,10s
	Rated output Current (3P, 1P)	37.9A/36.2A
	Max output Current (3P,1P)	41.7A/39.8A
	Communication	WIFI

PV side	Config.	63pcs * 600wp
	Input Power W	37800
	Input DC current	13.58A (4channels)
	Input DC voltage	707V (3channels) +662.85V(1channel)
	MPPT	4

Battery side	Type	LFP
	Voltage	51.2V*5=256V
	Capacity	5.12kWh *5 =25.6kWh
	Charging current	50A
	Discharging current	27.5A
	BMS	Included
	Communication between BMS & PCS	RS485

Grid / Generators	Input voltage	AC, 3Phase,400/230V AC, 1Phase,220~230V
	Rated input Current (3P, 1P)	37.9A/36.2A
	Max input Current (3P,1P)	41.7A/39.8A
	Frequency	50Hz/60Hz
	Power	No less than 25kW

EPS function		Yes
Protections		PV Input Lightning Protection, Anti-islanding Protection, PV String Input Reverse Polarity Protection, Insulation Resistor Detection, Residual Current Monitoring Unit, Output Over Current Protection, Output Shorted Protection
