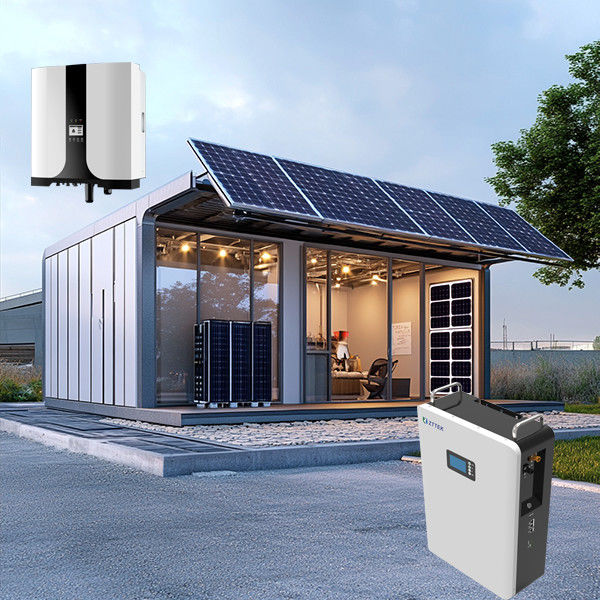

On-Grid Microgrid With LFP Energy Storage 10kw 16kwh

On-Grid Microgrid With LFP Energy Storage 10kw 16kwh

10kw On-Grid Microgrid

LFP Energy Storage Microgrid

16kwh On-Grid Microgrid

Place of Origin:

China

Brand Name:

ZT-TEK

Certification:

IEC 62619-2022, UN 38.3

Model Number:

ZT-ESSPLUS-10-51314

Contact Us

Request A Quote
Product Details
Solar:
25pcs Of 600wp
Battery:
16kwh
Battery Type:
LiFePO4
PCS:
10kW
MTTP:
2
Output:
AC, 3PHASE, 400/230V
Diesel Gensets:
Yes, With Connection Plug
Payment & Shipping Terms
Minimum Order Quantity
1
Packaging Details
Carton box
Delivery Time
10weeks
Payment Terms
L/C, T/T
Supply Ability
5GWh/Y
Product Description

ZT-TEK On-Grid Microgrid with LFP Energy Storage 10kw 16kwh
10kW AC output
16kwh Lithium-ion battery energy storage system  (can be expanded)

In a on-grid microgrid, LFP batteries enhance energy efficiency by storing surplus power generated by solar panels during the day and discharging it when demand is higher or when solar generation is low. This reduces the need to draw power from the grid, lowering energy costs and providing backup power in case of grid failures. The high charge and discharge efficiency of LFP batteries ensures that energy is used optimally, maximizing both cost savings and sustainability in the microgrid system.

Example Use Cases:
Remote Communities: Microgrids with solar, batteries, and generators are ideal for remote communities that are off the main grid, reducing reliance on expensive fuel deliveries for generators and improving sustainability.
Industrial Sites and Military Bases: In places where continuous power is essential and grid reliability is low, microgrids can ensure uninterrupted operation.
Urban Applications: Microgrids can be deployed in urban areas to improve resilience against blackouts and enable integration of renewable energy sources into the grid.

Data sheet

 ModelZT-ESSPLUS-10-51314
System parameterOutput VoltageAC, 3Phases,400/230V
 Output frequency50Hz/60Hz
 Rated output power10kW
 Max output power12kW
 Overload capacity18kW,10S
 Rated output Current14.5A
 Max output Current21.7A
 CommunicationWIFI

PV sideConfig.25PCS *600WP
 Input Power W15000
 Input DC current13.58A + 13.58A (2 channels)
 Input DC voltage574.47V & 530.28V (2 channels)
 MPPT2

Battery sideTypeLFP
 Voltage51.2V
 Capacity16.076kWh
 Charging current157A
 Discharging current157A
 BMSIncluded
 Communication between BMS & PCSRS485

On-Grid / GeneratorsInput voltageAC, 3Phases,400/230V
 Input current14.5A
 Max input current21.7A
 Frequency50Hz, 60Hz
 PowerNo less than 10kW

EPS function Yes
Protections PV Input Lightning Protection, Anti-islanding Protection, PV String Input Reverse Polarity Protection,
Insulation Resistor Detection, Residual Current Monitoring Unit, Output Over Current Protection,
Output Shorted Protection
