Name: Solar-Powered Microgrid With LFP Battery Storage For Rural Areas 30KW 40KWH
Brand: Jiangsu Zhitai New Energy Technology Co., Ltd
SKU: ZT-ESSPLUS-30-51100
Price: Negotiable USD
Availability: InStock

Solar-Powered Microgrid With LFP Battery Storage For Rural Areas 30KW 40KWH

40KWH Solar-Powered Microgrid

Rural Areas Solar-Powered Microgrid

30KW Solar-Powered Microgrid

Place of Origin:

China

Brand Name:

ZT-TEK

Certification:

IEC 62619-2022, UN 38.3

Model Number:

ZT-ESSPLUS-30-51100

Request A Quote

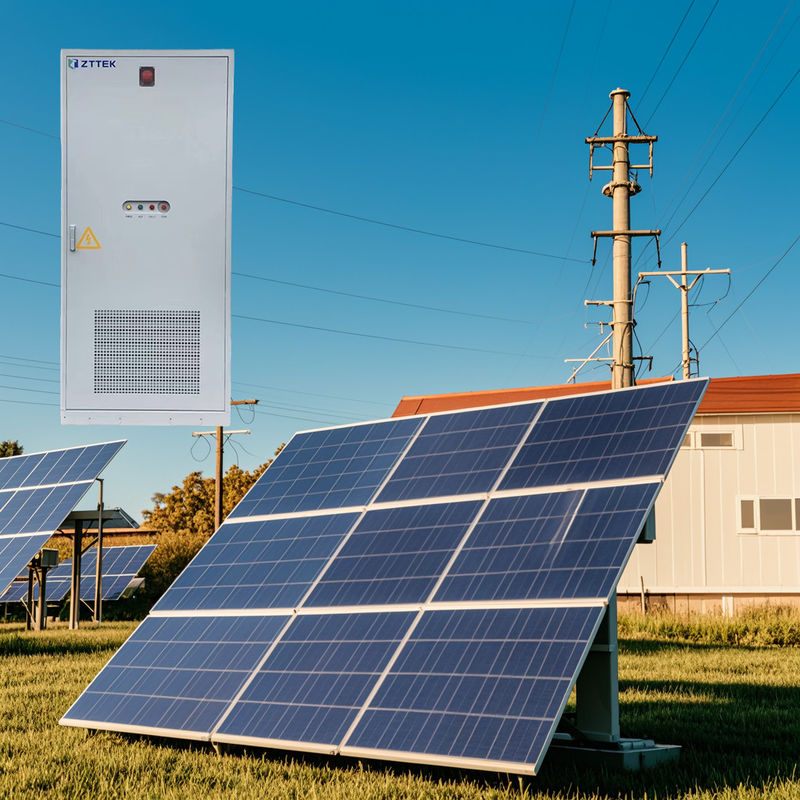

ZT-TEK Solar-Powered Microgrid with LFP Battery Storage for Rural Areas

For small size workshop & commercial scenarios

Output: AC 400V, 3Phase or AC 220V, 1Phase

Output capacity: 30kW

with 40.96kwh Lithium-ion battery energy storage system (can be expanded)

Microgrids using solar energy and LFP battery storage are an effective solution for rural or remote areas. These systems store solar power in LFP batteries for use during the night or cloudy days. With a longer lifespan than traditional lead-acid batteries, LFP batteries reduce maintenance costs and provide reliable performance over many years. This energy solution offers both sustainability and reliability, minimizing energy disruptions in off-grid communities.

Example Use Cases:
Remote Communities: Microgrids with solar, batteries, and generators are ideal for remote communities that are off the main grid, reducing reliance on expensive fuel deliveries for generators and improving sustainability.
Industrial Sites and Military Bases: In places where continuous power is essential and grid reliability is low, microgrids can ensure uninterrupted operation.
Urban Applications: Microgrids can be deployed in urban areas to improve resilience against blackouts and enable integration of renewable energy sources into the grid.

Data sheet

	Model	ZT-ESSPLUS-30-51100
System parameter	Output Voltage	AC, 3Phase,400/230V AC, 1Phase,220~230V
	Output frequency	50Hz/60Hz
	Rated output power	30kW
	Max output power	33kW
	Overload capacity	45kW,10S
	Rated output Current (3P, 1P)	45.5A/43.5A
	Max output Current (3P,1P)	50A/47.9A
	Communication	WIFI

PV side	Config.	75pcs* 600wp
	Input Power W	45000
	Input DC current	13.58A (6channels)
	Input DC voltage	574.47v (3channels)& 530.28V (3channels)
	MPPT	6

Battery side	Type	LFP
	Voltage	51.2V42strings = 409.6V
	Capacity	5.12kWh *8 =40.96kWh
	Charging current	50A
	Discharging current	27.5A
	BMS	Included
	Communication between BMS & PCS	RS485

Grid / Generators	Input voltage	AC, 3Phase,400/230V AC, 1Phase,220~230V
	Rated input Current (3P, 1P)	45.5A/43.5A
	Max input Current (3P,1P)	50A/47.9A
	Frequency	50Hz/60Hz
	Power	No less than 30kW

EPS function		Yes
Protections		PV Input Lightning Protection, Anti-islanding Protection, PV String Input Reverse Polarity Protection, Insulation Resistor Detection, Residual Current Monitoring Unit, Output Over Current Protection, Output Shorted Protection
