Name: Microgrid With Solar And LFP Batteries 12kW 16KWH
Brand: Jiangsu Zhitai New Energy Technology Co., Ltd
SKU: ZT-ESSPLUS-12-51314
Price: Negotiable USD
Availability: InStock

Microgrid With Solar And LFP Batteries 12kW 16KWH

12kW Microgrid With LFP Batteries

16KWH Microgrid With LFP Batteries

LFP Batteries Microgrid With LFP Batteries

Place of Origin:

China

Brand Name:

ZT-TEK

Certification:

IEC 62619-2022, UN 38.3

Model Number:

ZT-ESSPLUS-12-51314

Request A Quote

ZT-TEK Microgrid with Solar and LFP Batteries 12kW 16KWH
12kW AC output
16kwh Lithium-ion battery energy storage system (can be expanded)

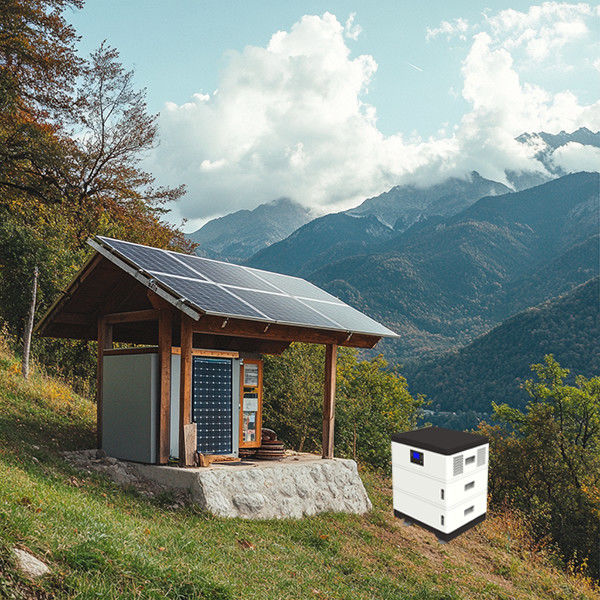

A microgrid with solar panels and LFP batteries offers a sustainable solution for localized energy needs. The solar panels generate power during the day, while the LFP batteries store excess energy. This stored energy is available for use during cloudy periods or at night. LFP batteries are ideal for microgrids due to their long cycle life, stability, and safety. They ensure that power remains reliable even when solar generation is insufficient.

Example Use Cases:
Remote Communities: Microgrids with solar, batteries, and generators are ideal for remote communities that are off the main grid, reducing reliance on expensive fuel deliveries for generators and improving sustainability.
Industrial Sites and Military Bases: In places where continuous power is essential and grid reliability is low, microgrids can ensure uninterrupted operation.
Urban Applications: Microgrids can be deployed in urban areas to improve resilience against blackouts and enable integration of renewable energy sources into the grid.

Data sheet

OFF-Grid	Model	ZT-ESSPLUS-12-51314
System parameter	Output Voltage	AC, 3Phases,400/230V
	Output frequency	50Hz/60Hz
	Rated output power	12kW
	Max output power	12kW
	Overload capacity	18kW , 10S
	Rated output Current	17.4A
	Max output Current	26A
	Communication	WIFI

PV side	Config.	30PCS*600WP
	Input Power W	18000
	Input DC current	13.58A + 13.58A (2 channels)
	Input DC voltage	662.85 V & 662.85V (2 channels)
	MPPT	2

Battery side	Type	LFP
	Voltage	51.2V
	Capacity	16.076kWh
	Charging current	157A
	Discharging current	157A
	BMS	Included
	Communication between BMS & PCS	RS485

Grid / Generators	Input voltage	AC, 3Phases,400/230V
	Input current	17.4A
	Max input current	26A
	Frequency	50Hz, 60Hz
	Power	No less than 12kW

EPS function		Yes
Protections		PV Input Lightning Protection, Anti-islanding Protection, PV String Input Reverse Polarity Protection, Insulation Resistor Detection, Residual Current Monitoring Unit, Output Over Current Protection, Output Shorted Protection
