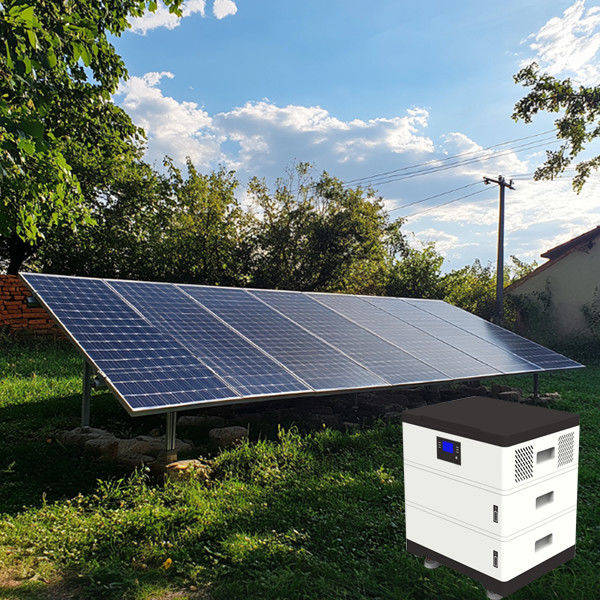

Name: Hybrid Microgrid With LFP Energy Storage For Remote Communities 5kW 10kWh System
Brand: Jiangsu Zhitai New Energy Technology Co., Ltd
SKU: ZT-ESSPLUS-5-51200
Price: 29,000.00 USD
Availability: InStock

Hybrid Microgrid With LFP Energy Storage For Remote Communities 5kW 10kWh System

5kW Hybrid Microgrid

Remote Communities Hybrid Microgrid

10kWh Hybrid Microgrid

Place of Origin:

China

Brand Name:

ZT-TEK

Certification:

IEC 62619-2022, UN 38.3

Model Number:

ZT-ESSPLUS-5-51200

Request A Quote

ZT-TEK Hybrid Microgrid with LFP Energy Storage for Remote Communities 5kW 10kWh system

ZT-ESSPLUS-5-51200

5kW PCS

10.24kWh lithium-ion battery energy storage system

AC 400V output

A hybrid microgrid integrates both renewable energy (like solar) and backup generators for reliability. In this system, LFP batteries provide a robust energy storage solution that helps balance supply and demand. During periods of high solar generation, the LFP batteries store excess energy for later use. When solar output is insufficient, the batteries can discharge stored energy to maintain a stable power supply. Their high charge/discharge efficiency and long lifespan make them an ideal choice for hybrid systems that require seamless power transitions.

Example Use Cases:
Remote Communities: Microgrids with solar, batteries, and generators are ideal for remote communities that are off the main grid, reducing reliance on expensive fuel deliveries for generators and improving sustainability.
Industrial Sites and Military Bases: In places where continuous power is essential and grid reliability is low, microgrids can ensure uninterrupted operation.
Urban Applications: Microgrids can be deployed in urban areas to improve resilience against blackouts and enable integration of renewable energy sources into the grid.

OFF-Grid	Model	ZT-ESSPLUS-5-51200
System parameter	Output Voltage	AC, 3Phases,400/230V
	Output frequency	50Hz/60Hz
	Rated output power	5kW
	Max output power	6kW
	Overload capacity	10kW,10s
	Rated output Current	7.3A
	Max output Current	10.8A
	Communication	WIFI

PV side	Config.	13pcs *600wp
	Input Power W	7800
	Input DC current	13.58A
	Input DC voltage	574.47V
	MPPT	2

Battery side	Type	LFP
	Voltage	51.2V
	Capacity	10.24kWh
	Charging current	100A
	Discharging current	100A
	BMS	Included
	Communication between BMS & PCS	RS485

Grid / Generators	Input voltage	AC, 3Phases,400/230V
	Input current	7.3A
	Max input current	10.8A
	Frequency	50Hz, 60Hz
	Power	No less than 5kW

EPS function		Yes
Protections		PV Input Lightning Protection, Anti-islanding Protection, PV String Input Reverse Polarity Protection, Insulation Resistor Detection, Residual Current Monitoring Unit, Output Over Current Protection, Output Shorted Protection
