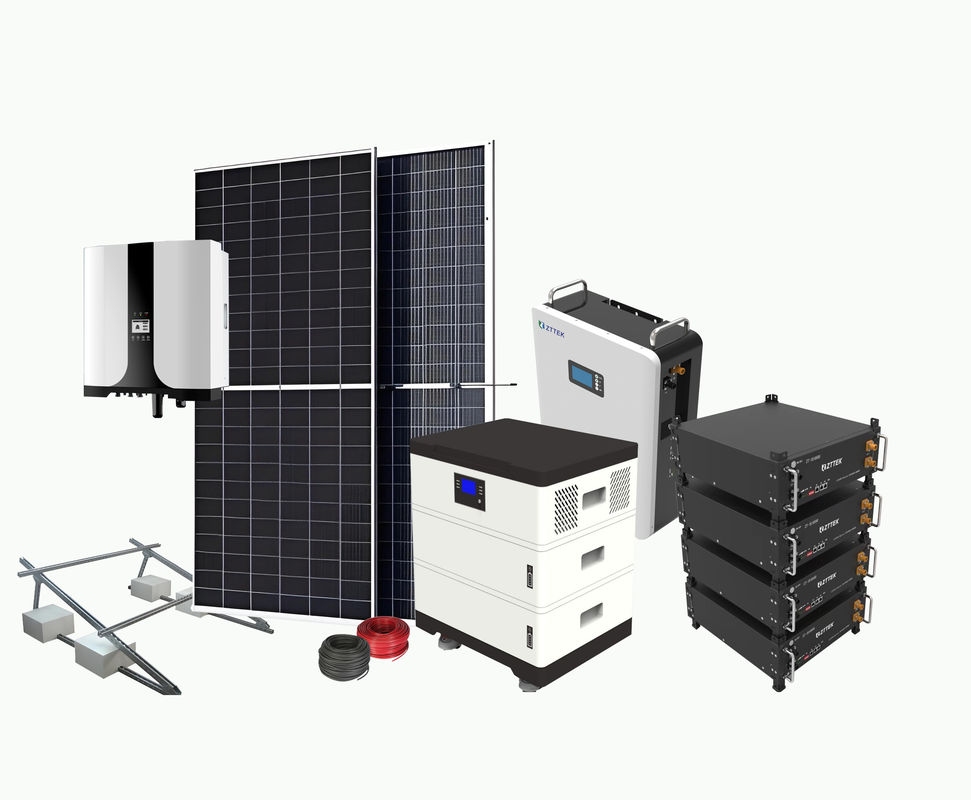

Name: Energy Independent Microgrid For Remote Communities 12kw 14kwh System
Brand: Jiangsu Zhitai New Energy Technology Co., Ltd
SKU: ZT-ESSPLUS-12-51280
Price: 29,000.00 USD
Availability: InStock

Energy Independent Microgrid For Remote Communities 12kw 14kwh System

14kwh Microgrid

12kw Microgrid

Remote Communities Microgrid

Place of Origin:

China

Brand Name:

ZT-TEK

Certification:

IEC 62619-2022, UN 38.3

Model Number:

ZT-ESSPLUS-12-51280

Request A Quote

ZT-TEK ONE STEP SOLUTION FOR MICROGRID

12kw 14kwh Energy-Independent Microgrid for Remote Communities
Microgrids in remote communities use solar power combined with LFP batteries to create a sustainable and energy-independent solution. The LFP batteries store solar energy during peak production hours and discharge it when demand is high or when the sun isn’t shining. This enables the community to avoid relying on the grid or expensive diesel generators. With LFP batteries, these microgrids offer enhanced safety, longevity, and performance, providing continuous power with minimal maintenance requirements.

Example Use Cases:
Remote Communities: Microgrids with solar, batteries, and generators are ideal for remote communities that are off the main grid, reducing reliance on expensive fuel deliveries for generators and improving sustainability.
Industrial Sites and Military Bases: In places where continuous power is essential and grid reliability is low, microgrids can ensure uninterrupted operation.
Urban Applications: Microgrids can be deployed in urban areas to improve resilience against blackouts and enable integration of renewable energy sources into the grid.

OFF-Grid	Model	ZT-ESSPLUS-12-51280
System parameter	Output Voltage	AC, 1Phase, 220V ~ 230V
	Output frequency	50Hz/60Hz
	Rated output power	12kW
	Max output power	12kW
	Overload capacity	21.6kW , 10S
	Rated output Current	43.47A
	Max output Current	52.17A
	Communication	WIFI

PV side	Config.	24pcs*600wp
	Input Power W	14400
	Input DC current	14.96A + 14.96A (2 Channels)
	Input DC voltage V	481.32V (2 Channels)
	MPPT	2

Battery side	Type	LFP
	Voltage	51.2V
	Capacity	14.336kWh
	Charging current	140A
	Discharging current	140A
	BMS	Included
	Communication between BMS & PCS	RS485

Grid / Generators	Input voltage	AC, 1Phase, 220V ~ 230V
	Input current	43.47A
	Max input current	52.17A
	Frequency	50Hz/60Hz
	Power	No less than 12kw

EPS function		Yes
Protections		PV Input Lightning Protection, Anti-islanding Protection, PV String Input Reverse Polarity Protection, Insulation Resistor Detection, Residual Current Monitoring Unit, Output Over Current Protection, Output Shorted Protection
