Name: Efficient Off-Grid Microgrid With LFP Storage 8kw 14kwh AC 1phase 220V Output
Brand: Jiangsu Zhitai New Energy Technology Co., Ltd
SKU: ZT-ESSPLUS-8-51280
Price: 29,000.00 USD
Availability: InStock

Efficient Off-Grid Microgrid With LFP Storage 8kw 14kwh AC 1phase 220V Output

1 phase Off-Grid Microgrid

Efficient Off-Grid Microgrid

LFP Storage Off-Grid Microgrid

Place of Origin:

China

Brand Name:

ZT-TEK

Certification:

IEC 62619-2022, UN 38.3

Model Number:

ZT-ESSPLUS-8-51280

Request A Quote

ZT-TEK ONE STEP SOLUTION FOR MICROGRID

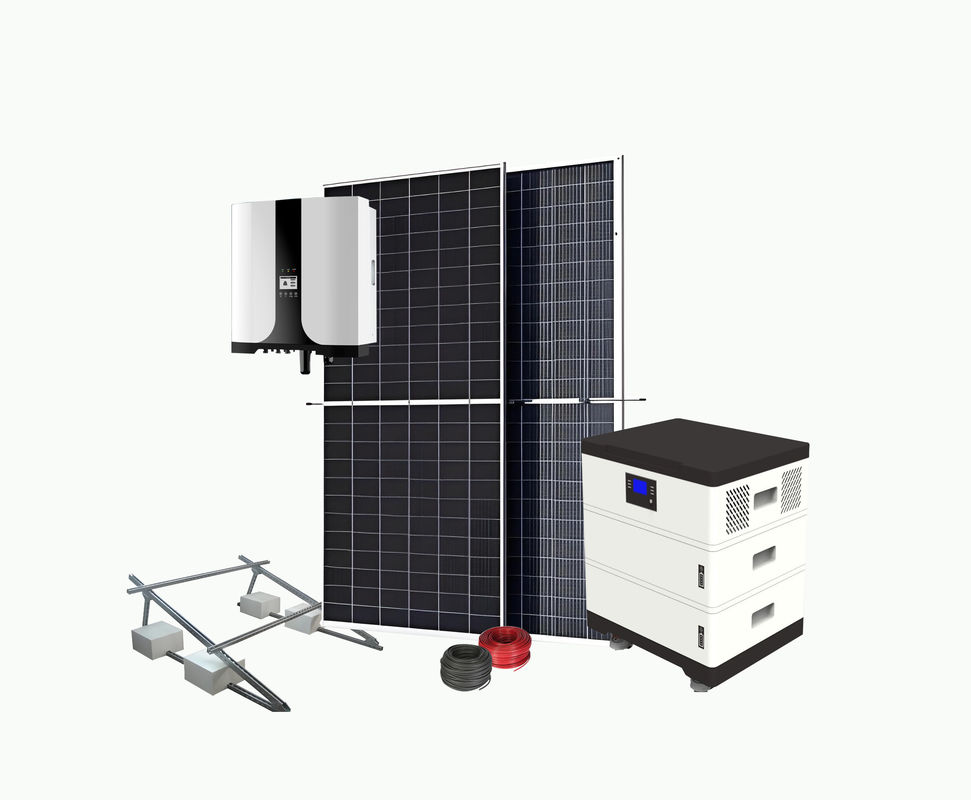

Microgrid with solar and battery 8kw 14kwh one step solution

Off-grid microgrids often rely on a combination of solar panels, LFP batteries, and backup generators to provide reliable power to remote areas. LFP batteries excel in this context by offering a high energy density and fast charging capabilities. These batteries allow for efficient energy storage, reducing the need for costly fuel deliveries to generators. Their ability to cycle thousands of times without significant degradation ensures that the system remains efficient and cost-effective over the long term, even in remote locations with limited infrastructure.

Example Use Cases:
Remote Communities: Microgrids with solar, batteries, and generators are ideal for remote communities that are off the main grid, reducing reliance on expensive fuel deliveries for generators and improving sustainability.
Industrial Sites and Military Bases: In places where continuous power is essential and grid reliability is low, microgrids can ensure uninterrupted operation.
Urban Applications: Microgrids can be deployed in urban areas to improve resilience against blackouts and enable integration of renewable energy sources into the grid.

OFF-Grid	Model	ZT-ESSPLUS-8-51280
System parameter	Output Voltage	AC, 1Phase, 220V ~ 230V
	Output frequency	50Hz/60Hz
	Rated output power	8kW
	Max output power	9.6kW
	Overload capacity	14.4kW,10S
	Rated output Current	34.78A
	Max output Current	41.73A
	Communication	WIFI

PV side	Config.	20pcs*600wp
	Input Power W	12000
	Input DC current	13.58A + 13.58A (2 Channels)
	Input DC voltage V	441.9V (2 Channels)
	MPPT	2

Battery side	Type	LFP
	Voltage	51.2V
	Capacity	14.336kWh
	Charging current	140A
	Discharging current	140A
	BMS	Included
	Communication between BMS & PCS	RS485

Grid / Generators	Input voltage	AC, 1Phase, 220V ~ 230V
	Input current	34.78A
	Max input current	41.73A
	Frequency	50Hz/60Hz
	Power	No less than 8kw

EPS function		Yes
Protections		PV Input Lightning Protection, Anti-islanding Protection, PV String Input Reverse Polarity Protection, Insulation Resistor Detection, Residual Current Monitoring Unit, Output Over Current Protection, Output Shorted Protection
