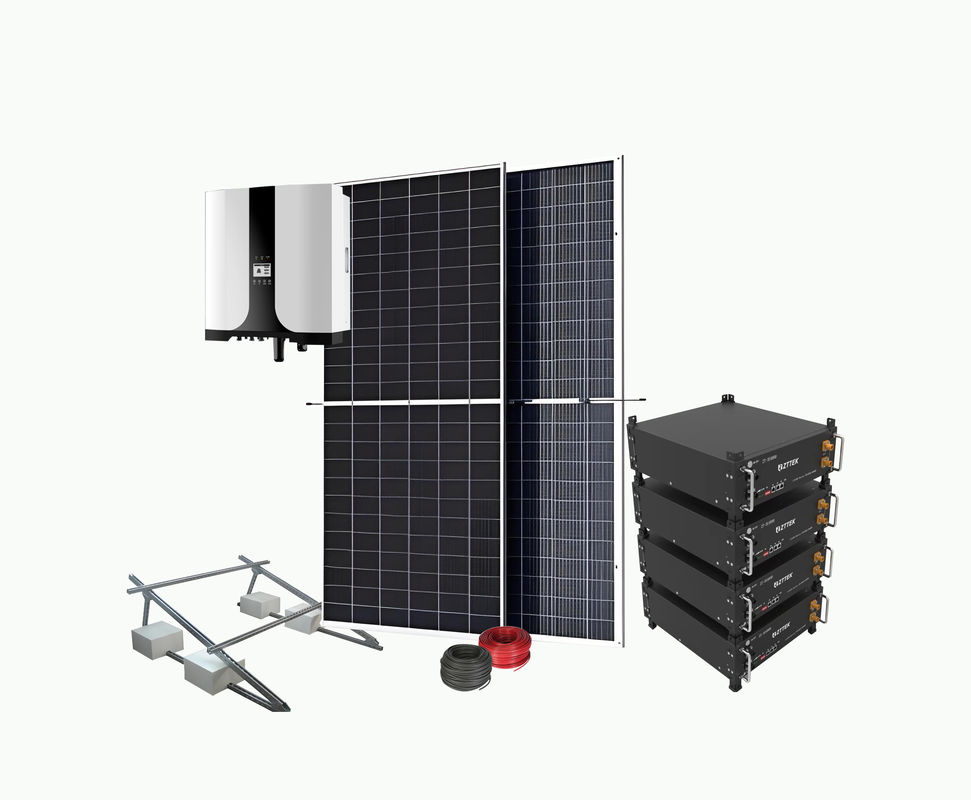

Name: Microgrid With Solar And Battery 6kw 14kwh One Step Solution
Brand: Jiangsu Zhitai New Energy Technology Co., Ltd
SKU: ZT-ESSPLUS-6-51280
Price: Negotiable USD
Availability: InStock

Microgrid With Solar And Battery 6kw 14kwh One Step Solution

6kw Microgrid

14kwh Microgrid

Solar Battery Microgrid

Place of Origin:

China

Brand Name:

ZT-TEK

Certification:

IEC 62619-2022, UN 38.3

Model Number:

ZT-ESSPLUS-6-51280

Request A Quote

ZT-TEK ONE STEP SOLUTION FOR MICROGRID
Microgrid with solar and battery 6kw 14kwh one step solution

In a solar-powered microgrid, LFP batteries serve a critical role by storing excess solar energy generated during the day for use at night or during cloudy periods. Unlike traditional lead-acid batteries, LFP batteries are more durable, require less maintenance, and are less prone to thermal runaway. This makes them an ideal choice for microgrid systems, ensuring reliable power during grid failures or low sunlight hours, all while supporting sustainability and reducing reliance on fossil fuels.

Example Use Cases:
Remote Communities: Microgrids with solar, batteries, and generators are ideal for remote communities that are off the main grid, reducing reliance on expensive fuel deliveries for generators and improving sustainability.
Industrial Sites and Military Bases: In places where continuous power is essential and grid reliability is low, microgrids can ensure uninterrupted operation.
Urban Applications: Microgrids can be deployed in urban areas to improve resilience against blackouts and enable integration of renewable energy sources into the grid.

OFF-Grid	Model	ZT-ESSPLUS-6-51280
System parameter	Output Voltage	AC, 1Phase, 220V ~ 230V
	Output frequency	50Hz/60Hz
	Rated output power	6kW
	Max output power	7.2kW
	Overload capacity	12kW, 10S
	Rated output Current	26.08A
	Max output Current	31.3A
	Communication	WIFI

PV side	Config.	15pcs* 600wp
	Input Power W	9000
	Input DC current	13.58A + 13.58A (2 Channels)
	Input DC voltage V	309V & 353V (2 Channels)
	MPPT	2

Battery side	Type	LFP
	Voltage	51.2V
	Capacity	14.336kWh
	Charging current	140A
	Discharging current	140A
	BMS	Included
	Communication between BMS & PCS	RS485

Grid / Generators	Input voltage	AC, 1Phase, 220V ~ 230V
	Input current	26.08A
	Max input current	31.3A
	Frequency	50Hz/60Hz
	Power	No less than 6kw

EPS function		Yes
Protections		PV Input Lightning Protection, Anti-islanding Protection, PV String Input Reverse Polarity Protection, Insulation Resistor Detection, Residual Current Monitoring Unit, Output Over Current Protection, Output Shorted Protection
