Name: Microgrid 5kw 10kwh with Photovoltaic LFP Battery Bank PCS And MTTP
Brand: Jiangsu Zhitai New Energy Technology Co., Ltd
SKU: ZT-ESSPLUS-5-51200
Price: Negotiable USD
Availability: InStock

Microgrid 5kw 10kwh with Photovoltaic LFP Battery Bank PCS And MTTP

Microgrid 10kwh

Microgrid 5kw 10kwh

Microgrid PCS

Place of Origin:

China

Brand Name:

ZT-TEK

Certification:

IEC 62619-2022, UN 38.3

Model Number:

ZT-ESSPLUS-5-51200

Request A Quote

ZT-TEK ONE STEP SOLUTION FOR MICROGRID

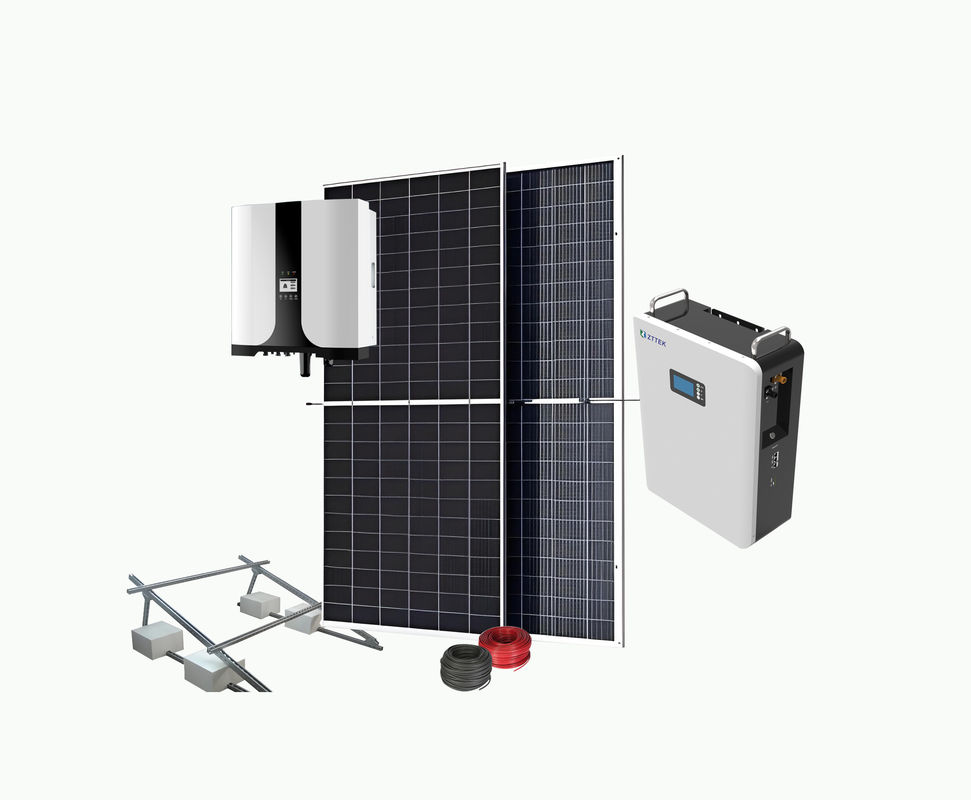

Microgrid 5kw 10kwh -with photovoltaic, with LFP battery bank, with PCS and MTTP

A microgrid is a localized energy system that can function independently or alongside the main grid. It typically integrates renewable energy sources like solar power, battery storage, and backup generators. The Lithium Iron Phosphate (LFP) batteries in these systems are key to optimizing energy storage, offering a safe and efficient solution for storing excess solar power. Their long cycle life and thermal stability ensure that stored energy can be reliably discharged when needed, even during extended cloudy days or grid outages, providing energy security to the community.

Example Use Cases:

Remote Communities: Microgrids with solar, batteries, and generators are ideal for remote communities that are off the main grid, reducing reliance on expensive fuel deliveries for generators and improving sustainability.

Industrial Sites and Military Bases: In places where continuous power is essential and grid reliability is low, microgrids can ensure uninterrupted operation.

Urban Applications: Microgrids can be deployed in urban areas to improve resilience against blackouts and enable integration of renewable energy sources into the grid.

OFF-Grid	Model	ZT-ESSPLUS-5-51200
System parameter	Output Voltage	AC, 1Phase, 220V ~ 230V
	Output frequency	50Hz/60Hz
	Rated output power	5kW
	Max output power	6kW
	Overload capacity	10kW, 10s
	Rated output Current	21.73A
	Max output Current	26.08A
	Communication	WIFI

PV side	Config.	13pcs * 600wp
	Input Power W	7500
	Input DC current	13.58A + 13.58A (2 Channels)
	Input DC voltage V	309V & 265V (2 Channels)
	MPPT	2

Battery side	Type	LFP
	Voltage	51.2V
	Capacity	10.24kWh
	Charging current	100A
	Discharging current	100A
	BMS	Included
	Communication between BMS & PCS	RS485

Grid / Generators	Input voltage	AC, 1Phase, 220V ~ 230V
	Input current	21.73A
	Max input current	26.08A
	Frequency	50Hz/60Hz
	Power	No less than 5kw

EPS function		Yes
Protections		PV Input Lightning Protection, Anti-islanding Protection, PV String Input Reverse Polarity Protection, Insulation Resistor Detection, Residual Current Monitoring Unit, Output Over Current Protection, Output Shorted Protection
