Hybrid Battery ESS For Commercial And Industrial Charged By PV Panel Or Grid Or Diesel Generator 60kw 198kwh

Hybrid Battery ESS For Commercial And Industrial Charged By PV Panel Or Grid Or Diesel Generator 60kw 198kwh

Diesel generator hybrid battery ESS

Commercial Industrial hybrid battery ESS

PV panel hybrid battery ESS

Place of Origin:

China

Brand Name:

ZT-TEK

Certification:

ISO, UL,UN38.3, IEC62619,IEC61000,MSDS

Model Number:

ZT60kW-198kWh

Contact Us

Request A Quote
Hybrid Battery ESS For Commercial And Industrial Charged By PV Panel Or Grid Or Diesel Generator 60kw 198kwh Hybrid Battery ESS For Commercial And Industrial Charged By PV Panel Or Grid Or Diesel Generator 60kw 198kwh Hybrid Battery ESS For Commercial And Industrial Charged By PV Panel Or Grid Or Diesel Generator 60kw 198kwh Hybrid Battery ESS For Commercial And Industrial Charged By PV Panel Or Grid Or Diesel Generator 60kw 198kwh
Product Details
AC Output:
60kw
Battery Capacity:
198kwh
Payment & Shipping Terms
Minimum Order Quantity
1
Price
USD28000-30000
RELATED PRODUCTS
Good price PV Panel Small Size C&I Commercial And Industrial ESS 41KWH -20KW online

PV Panel Small Size C&I Commercial And Industrial ESS 41KWH -20KW

Get Best Price
Good price LiFePO4 Battery Type Small Size C&I Commercial And Industrial ESS 30KWH -15KW online

LiFePO4 Battery Type Small Size C&I Commercial And Industrial ESS 30KWH -15KW

Get Best Price
Good price Small Size Commercial And Industial Battery Energy Storage System 86KWH -40KW online

Small Size Commercial And Industial Battery Energy Storage System 86KWH -40KW

Get Best Price
Good price Small Size C&I Commercial And Industrial ESS 67KWH -30KW online

Small Size C&I Commercial And Industrial ESS 67KWH -30KW

Get Best Price
Contact Us
86--18221646718
sales@zt-tek.com
86--18221646718
Contact Now
Product Description

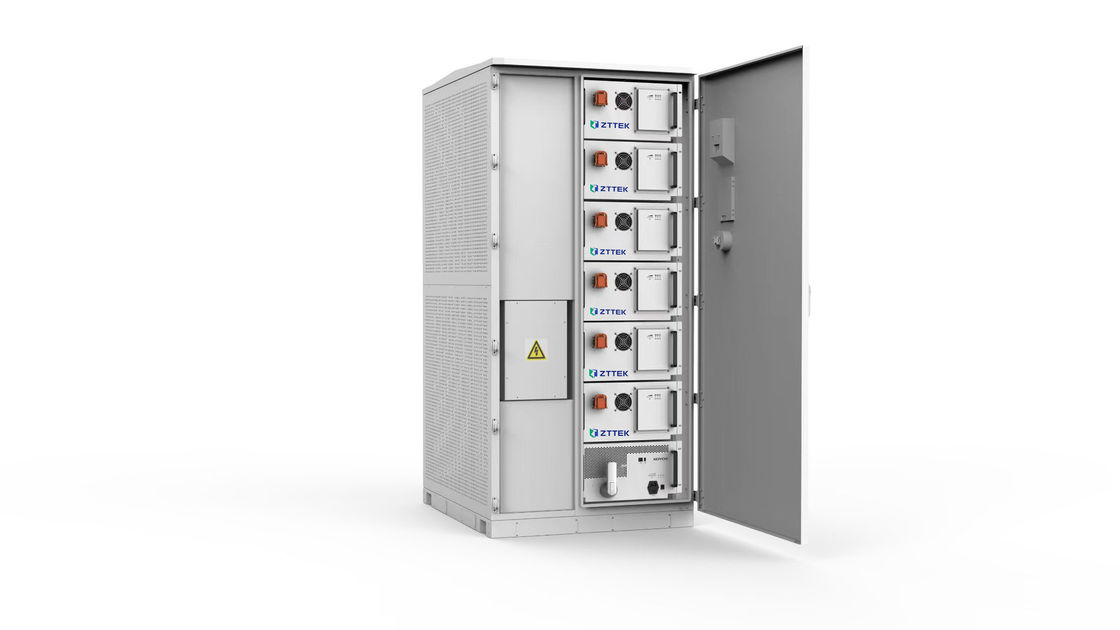

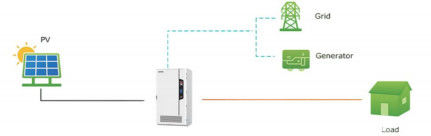

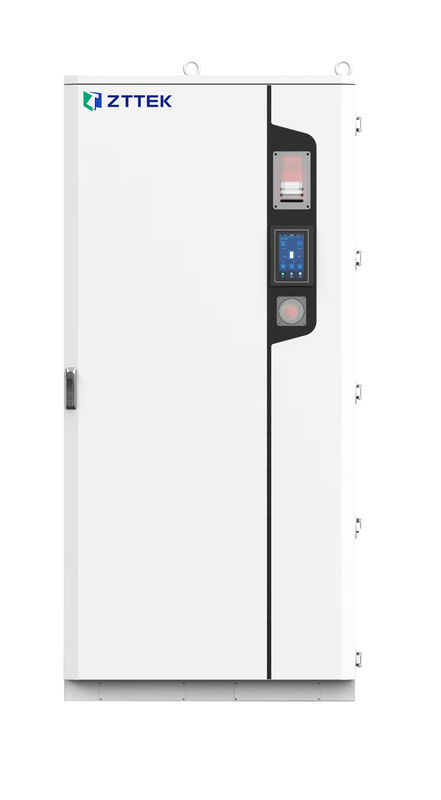

hybrid battery ESS for commercial and industrial, charged by PV panel or grid or diesel generator

Output 3phase 60kw, capacity 198kwh

Hybrid Battery ESS For Commercial And Industrial Charged By PV Panel Or Grid Or Diesel Generator 60kw 198kwh 0

ZT25kW-60kWh, hybrid battery ESS, it can be easly charged by PV or grid or diesel geneator, could be used for backup use.

output 50hz/60hz, 380/220V.

Model ZT10kW-30kWh ZT25kW-60kWh ZT50KW-108KWH ZT60KW-198KWH
Efficiency
MPPT Efficiency(%) 99.90 99.90 99.90 99.90
Max.Efficiency(%) >97.80 >97.80 >97.80 >97.80
Battery Efficiency(%) >98.10 >98.10 >98.5 >98.5
Battery Pack
Cell Type LFP
Battery Capacity(Ah) 100 100 280 280
Storage Capacity(kWh) 30 60 108 (optional: 121) 198 (optional: 221)
Available Capacity(kWh) 27 54 96.7 (option: 108.9) 177 (option: 199)
Cycle Life 7000 7000 8000 8000
PVInput
Max.Input Power(W) 15000 37500 75000 90000
Max.Input Voltage(V) 1000 1000 1000 1000
MPPT Operating Voltage Range(V) 180~900/610 180~900/610 180~900/610 180~900/610
Number o MPPT Trackers 2 2 4 4
Numberof Strings per MPPT 2/2 2/2 2/2/2/2 2/2/2/2
Max.Input Current(A) 28/28 36/36 36/36/36/36 36/36/36/36
Max.Short Circuit Current(A) 32/32 40/40 40/40/40/40 40/40/40/40
Battery Port
Operating Voltage Range(V) 180~700 538-700 180~550 180~550
Max.Charge/Discharge Current(A) 50/50 65/65 25/30 25/30
AC Input and Output
Nominal Output Power(kW) 20 25 50 60
Max.Apparent Power (VA) 20000 27500 55000 66000
Nominal Output Voltage(V) 380/400,3L/N/PE
Nominal Output Frequency(Hz) 50
Max.Output Current(A) 31 43 79 95
Power Factor ~ 1(0.8 lead~0.8 lag can beset)
Total Harmonic Distortion(%) <3
Off-Grid AC Output(Back-upAC Output)
Nominal Ouput Power (ONLY BATTERY)(W) 15360 25000 50000 60000
Max.Apparent Power(VA) 15360 27500 60000 66000
Nominal Output Voltage(V) 380/400,3L/N/PE
Nominal Output Frequency(Hz) 50
Max.Output Current(A) 31 43 79 95
Genaral Data
Operating Temperature Range(℃) -20~+60(>45 derating)
Altitude(m) <4000
Noise Emission (dB) <40
Topology Transformerless
Cooling Method Natural
Ingress Protection Rating IP54
Relative Humidity(%) 0~90,without condensation
Display LCD
Communication RS485 (WiFi/GPRS Optinal)
Communication With Meter RS485
Dimension (W*H*D) 510*1603*447 510*1664*447 900*1800*1150 1200*2340*1380
Certification
Safety Standards IEC62619, IEC62109-1/-2
EMC Standards EN61000-6-1/-3,IEC61000
Transportation Standard UN38.3
