Place of Origin:
China
Brand Name:
ZT-TEK
Certification:
IEC62619
Model Number:
ZT-C10-500KWH
Contact Us

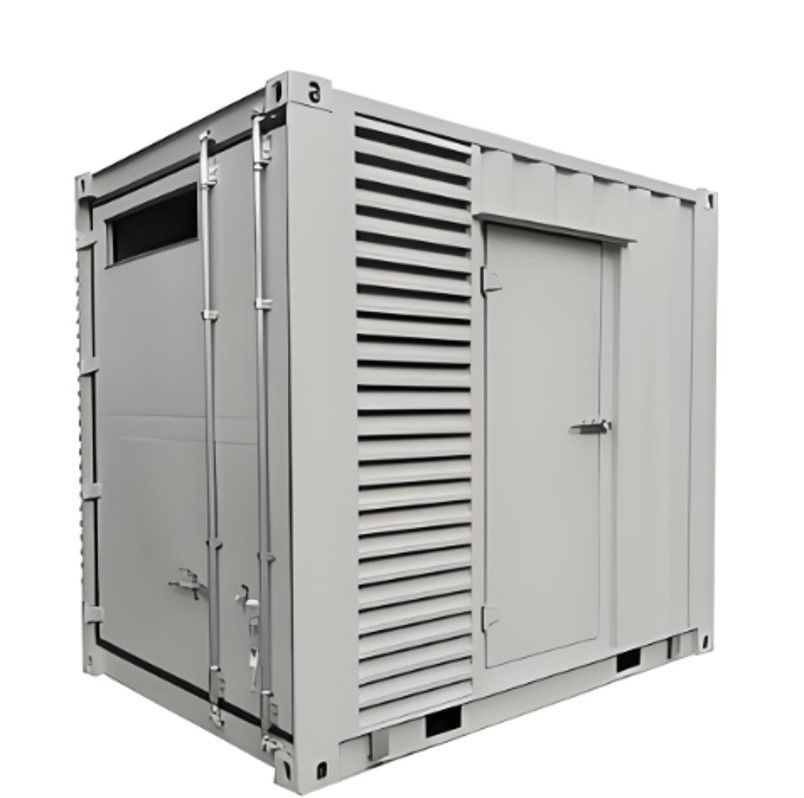

10Ft battery energy storage system ZT-C10 500kwh 250kw
ZT-C10 series 10'ft containerized energy storage system is a series pre-produced All In One battery energy storage system.
It contains IEC62619 certified battery rack with built-in BMS, EMS, PCS, Fire fighting system.
Applications:
Grid support
Demand charge
Load shifiting
Energy buffer
Backup power
Off-grid power supply
| Model | ZT-C10-372Kwh | ZT-C10-430Kwh | ZT-C10-500Kwh |
| ◎DC input parameters | |||
| Cell type | LFP 280AH | LFP 280AH | LFP 280AH |
| Initial battery nominal energy | 372kWh | 430kWh | 500kWh |
| ◎AC output parameters | |||
| AC rated power | 150KW | 200kW | 250kW |
| Rated voltage | 400V±15% | ||
| Rated frequency | 50Hz | ||
| Grid frequency range | 47~52Hz | ||
| Maximum harmonic current | ≤3% | ||
| Battery compartment protection class | IP54 | ||
| Protection class of PCS compartment | IP34 | ||
| Operating temperature range | -10℃~50℃ | ||
| Maximum working altitude | ＜2000m | ||
| Cooling method of battery compartment | HVAC | ||
| container fire fighting system | Perfluorohexane | ||
| Communication interface | Ethernet | ||
| Communication protocol | Modbus TCP/IP | ||
| Container Size | 10ft | ||
