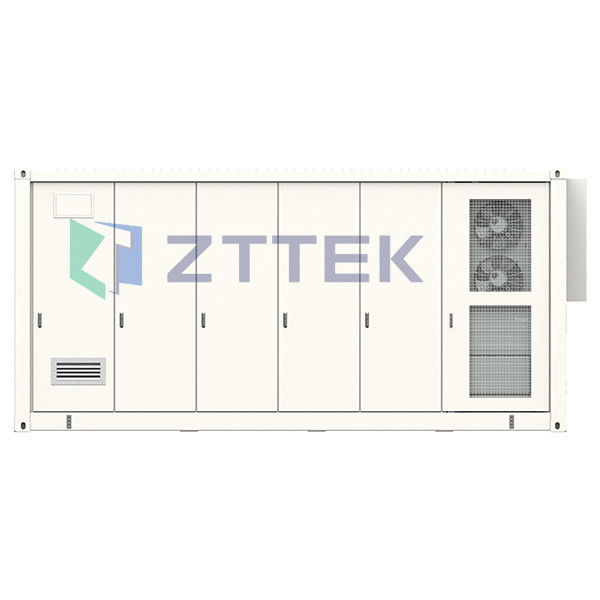

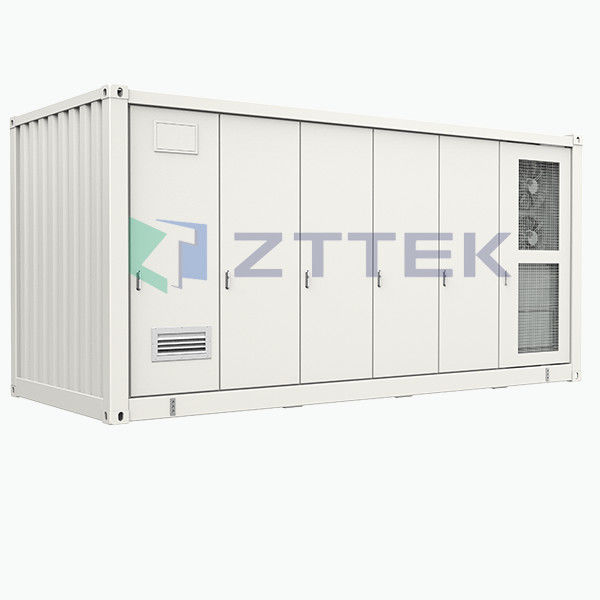

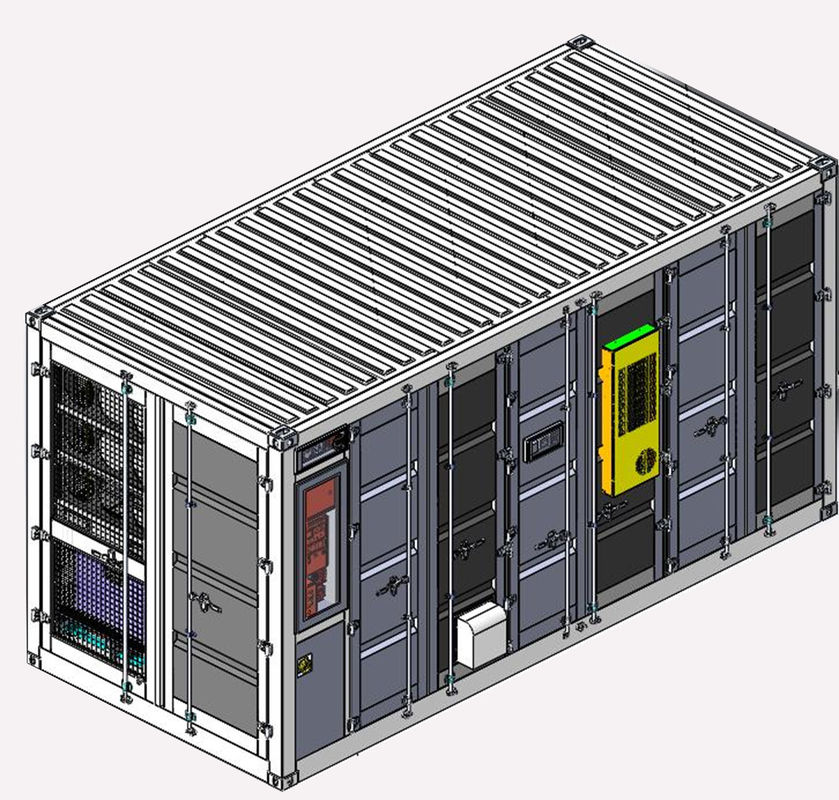

20Ft containerized lithium-ion LFP Battery Bank ZT-EES-5626-51314
Capacity: 5626kWh
Modular and robust energy storage system designed for high-performance, safety, and long life. self developed LFP technology, a subtype of lithium-ion chemistry, is well-known for its stability, efficiency, and environmental friendliness. It is ideal for applications requiring reliable and sustainable energy storage solutions.
System parameters:
Capacity: 5017kWh
Battery: 350pcs of 51.2V/314Ah air cooling battery pack
Key Features:
High Safety:
LFP batteries are inherently stable, offering excellent thermal and chemical stability.
Non-flammable and resistant to overheating, minimizing the risk of thermal runaway.
Long Cycle Life:
Offers up to 4,000–6,000 charge/discharge cycles, significantly outlasting many other chemistries.
Retains performance over extended use, ensuring long-term reliability.
Efficient Performance:
High charge and discharge rates, making it suitable for demanding energy requirements.
High energy density and efficiency, with up to 95% round-trip efficiency.
Eco-Friendly:
Free from toxic heavy metals like cobalt, reducing environmental impact.
Fully recyclable and sustainable, supporting green energy initiatives.
Modular Design:
Scalable configurations to meet different capacity and voltage requirements.
Easy integration with renewable energy systems such as solar or wind.
Wide Operating Temperature Range:
Functions reliably in temperatures ranging from -20°C to 60°C, suitable for various environments.
Key components:
Cell-Module-Battery Cluster
BMS
Thermal management system
Fully submerged gas fire extinguishing system
High-Voltage Control Box
IP54 Outdoor container
Applications:
Grid support
Demand charge
Load shifiting
Energy buffer
Backup power
Off-grid power supply
Data sheet
| Container Size | 40ft |
| Model | ZT-EES-5626-51314 |
| System capacity kWh | 5626.88 |
| Battery parameters | |
| Battery Module | 51.2V/314Ah |
| Cooling method | Industrial air conditioning/Air cooling |
| Battery type | LFP |
| Battery cluster config. | 25 |
| Total Number of cluster | 14 |
| DC side parameters | |
| Rated voltage V | 1280 |
| Voltage range V | 1120～1140 |
| Charging/discharging rate | 0.5C |
| AC side parameters - for PCS selection reference | |
| Rated power | 3000kW |
| Rated voltage | 690V |
| Rated current | 2510A |
| Rated on-grid frequency | |
| System parameters | |
| IP Class | IP54 |
| Working temperature range | -30℃～+55℃ |
| Relative humidity | 0～95%,No condensation |
| Max. altitude(m) | ≤3000(>3000 requires derating) |
| Fire fighting system | Gas fire Protection (heptafluoropropane/perfluorohexanone), Firefighting Water Inlet |
| Communication | Modbus-RTU/ Modbus-TCP/IEC61850 /IEC104 |
