Place of Origin:
China
Brand Name:
ZT-TEK
Certification:
IEC 62619-2022, UN 38.3
Model Number:
ZT ESS AIO-228/100
Contact Us
Model: ZT ESS AIO-241/100

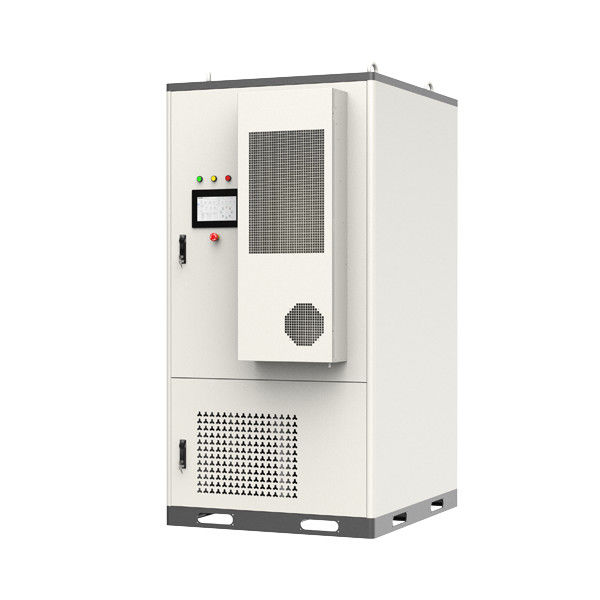

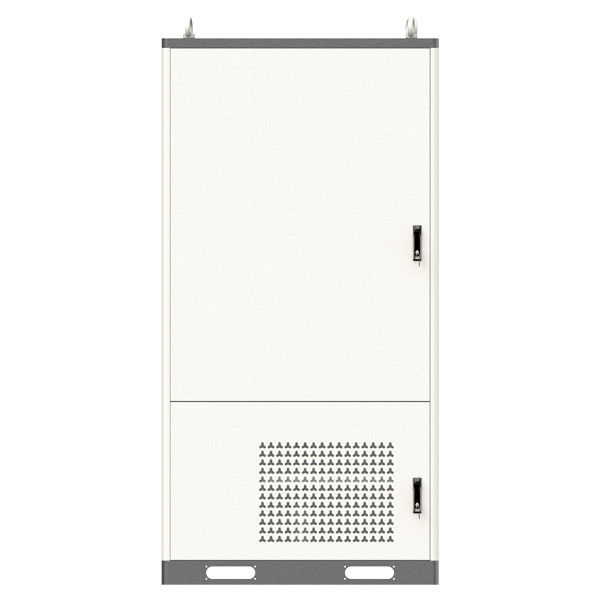

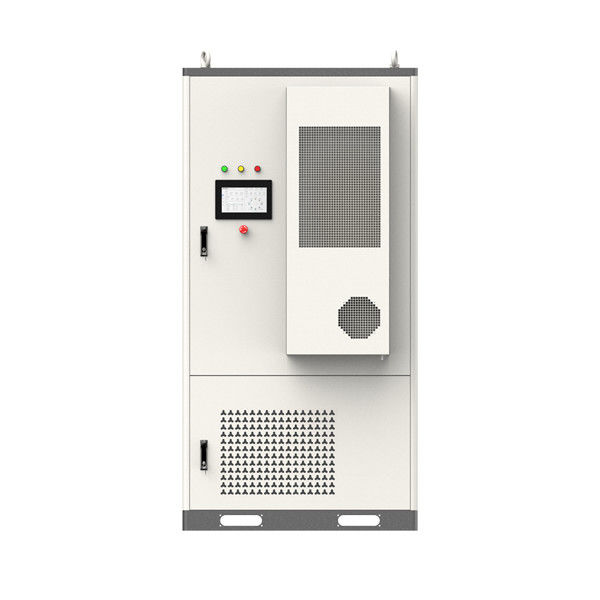

ZT-TEK middle size commercial & industrial use battery energy storage system (BESS)
Reduce renewable energy curtailment . This advanced system stores excess energy during peak production,
enabling efficient utilization. Ideal for maximizing sustainability and minimizing waste, it’s a key solution for modern energy challenges.
All-in-one design, compact size. high power density, Air cooling battery pack.
with lithium-ion battery pack, hybrid inverter, temperature control system, fire-fighting system.
Plug and play design.
Easy for expansion, multi-units can be parallel connected.
AC Parameters:
Rated output voltage: 400~380V/230~220V, AC 3phase, 3L+PE or 3L+PE+N
Frequency: 50/60Hz
Rated output power: 105kW
Max apparent power: 116kVA
Max output current: 167A
Battery side:
DC Voltage range: 615 ~ 950V
Rated charging/discharging current: 157A/157A
Max charging/discharging current: 170A/170A
Battery config.: 16pcs * 48V314AH battery
Rated capacity: 16pcs *15.072kwh = 241kwh
Available capacity: 217kwh
Temperature system: Air conditioner
Fire flighting system: Detector +aerogel
System parameters:
Working temperature: -20 ~ 50
Altitude: <2000
Protection: IP54
Options:
