Place of Origin:
China
Brand Name:
ZT-TEK
Certification:
IEC62619
Model Number:
ZT-ESS-1720-51280
Contact Us

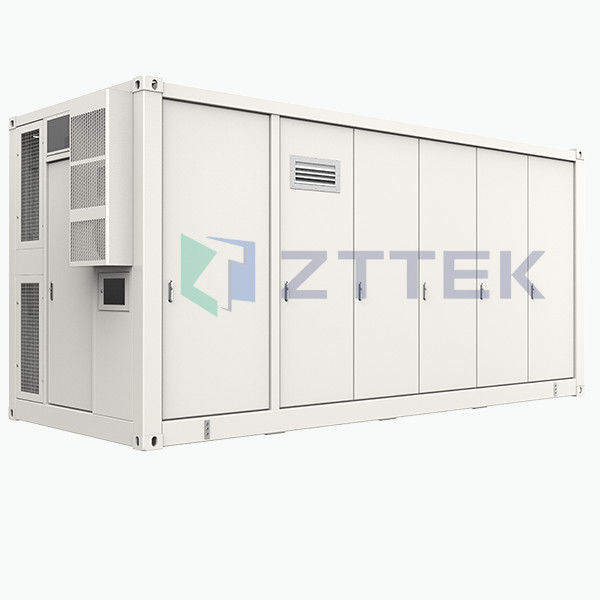

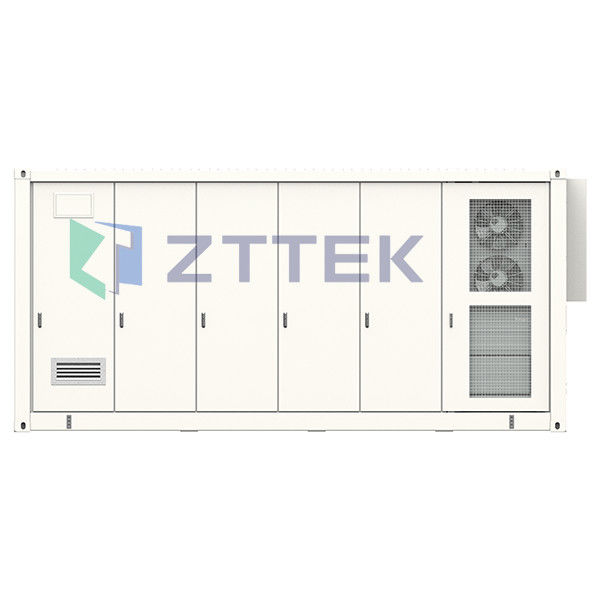

20Ft battery energy storage system ZT-ESS-1720-51280
It is a pre-fabricated lithium-ion battery bank
Convenient
Standard ISO cabinet,
Easy to transport and install
IP54 protection for outdoor use
High Safety
Real-time monitoring, ensure the consistency of
battery life cycle.
Advanced (BMS) battery management system,
effectively avoid battery overcharging,
overdischarge and short circuit etc...
Triple Fire protection + Active pressure relief
Easy operation
Multiple working modes are available
User-friendly menu
Expandable
Support multi-container parallel,
Convenient and flexible expansion
Applications:
Grid support
Demand charge
Load shifiting
Energy buffer
Backup power
Off-grid power supply
Data sheet
| Container Size | 20ft |
| Model | ZT-EES-1720-51280 |
| System capacity kWh | 1720.32 |
| Battery parameters | |
| Battery Module | 51.2V/280Ah |
| Cooling method | Industrial air conditioning/Air cooling |
| Battery type | LFP |
| Battery cluster config. | 15 |
| Total Number of cluster | 8 |
| DC side parameters | |
| Rated voltage V | 768 |
| Voltage range V | 672～864 |
| Charging/discharging rate | 0.5C |
| AC side parameters - for PCS selection reference | |
| Rated power | 1000kW |
| Rated voltage | 400V |
| Rated current | 1443A |
| Rated on-grid frequency | 50/60Hz |
| System parameters | |
| IP Class | IP54 |
| Working temperature range | -30℃～+55℃ |
| Relative humidity | 0～95%,No condensation |
| Max. altitude(m) | ≤3000(>3000 requires derating) |
| Fire fighting system | Gas fire Protection (heptafluoropropane/perfluorohexanone), Firefighting Water Inlet |
| Communication | Modbus-RTU/ Modbus-TCP/IEC61850 /IEC104 |
