Name: 200kWH Commercial Battery System BESS With Diesel Generator For Rental
Brand: Jiangsu Zhitai New Energy Technology Co., Ltd
Price: 29,000.00 USD
Availability: InStock

Home > products > Commercial And Industrial ESS >

200kWH Commercial Battery System BESS With Diesel Generator For Rental

200kWH commercial battery system

commercial battery system BESS

bess battery system

Place of Origin:

China

Brand Name:

ZT-TEK

Request A Quote

200kWH Commercial Battery System BESS With Diesel Generator For Rental

Product Details

Payment & Shipping Terms

Minimum Order Quantity

LiFePO4 Battery Type Small Size C&I Commercial And Industrial ESS 30KWH -15KW

Get Best Price

Small Size Commercial And Industial Battery Energy Storage System 86KWH -40KW

Get Best Price

Small Size C&I Commercial And Industrial ESS 67KWH -30KW

Get Best Price

Energy Storage ESS for commercial and industrial use, Uninterrupted power solution

Get Best Price

86--18221646718

sales@zt-tek.com

86--18221646718

Contact Now

Product Description

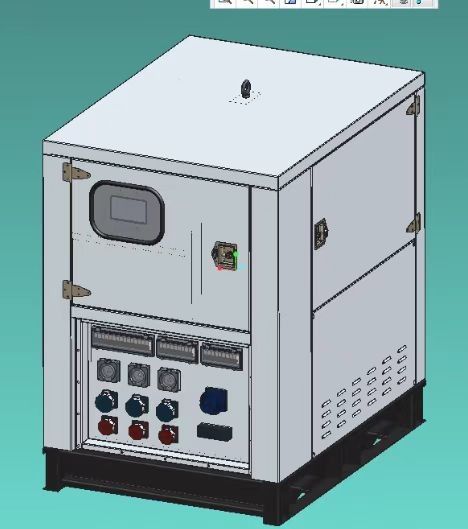

200kWH commercial battery system BESS to be used with diesel generator for rental

ESS-COMMERCIAL ZHITAI.pdf

		MODEL #	HES-45.60/400
POWER	Output (stand alone)	Standby Rating 30 min (kVA) @ 25°C 1	45
		Prime Rating (kW) @ 25°C / @ 45°C 1	36	27
	Output (when external source available)	Maximum Load per Phase Before Generator Start Command (kW) 1, 2	10.2 (Immediate Start) 9 (5mins)
		Maximum Load (all phases) Before Generator Start Command (kW) 5	26.9 (2 hours)
	Combined System Output	Continuous Pass Through per phase (External Source Only) (A)	100
		Max Combined Output per phase (External Source + HES) (A)1	125
		Max Power Assist (kVA)1	25
	Input/Output	AC Input Voltage Range (V)	400 (320 - 460)
		AC Output Voltage - 50 Hz (V)	380
		Input Connections	125A 400V & 16A 230V CEE-Forms, 400V BusBar
		Output Connections	125A 400V & 16A 230V CEE-Form & 400V BusBar
		Protection	Overload, Overheat, Short Circuit, Earth Fault
STORAGE		Type	LFP (Lithium Iron Phosphate)
		Nominal Capacity @ 25°C (kWh)	56.8
		Charge Time (hours) @ 25°C 3	3
		Maximum System Efficiency @ 25°C	90%
		Battery Management System	Industrial Grade Intelligent Passive BMS Optimised for HES Applications
		Expected Cycle Life (To 80% Original Capacity)	6,000
		Maintenance Charge Cycle	≤ 3 week
CONTROL		Control Panel	ECM 7” Touch Screen Control Module
		Temperature Control	Analogue Voltage Controlled Forced Air Cooling
		Remote Generator Start	Dry Contact Relay
		Remote Communication	3G/4G Dual SIM Modem/Router, Portal
ENVIRONMENTAL		Water/Ingress Protection Rating	IP55
		Operating Temperature Range (°C) 4	-12 to +50
		Sound Level (dBA) @ 0% / 100% Fan Speed	Acoustic Pressure @ 3m: 0 /66
MECHANICAL		Dimensions L x W x H (mm)	1140 x 1450 x 1730
		Weight (kg)	1440
		Lift Points	Forklift Pockets, Lift & Drag Skid, Lifting Ring
